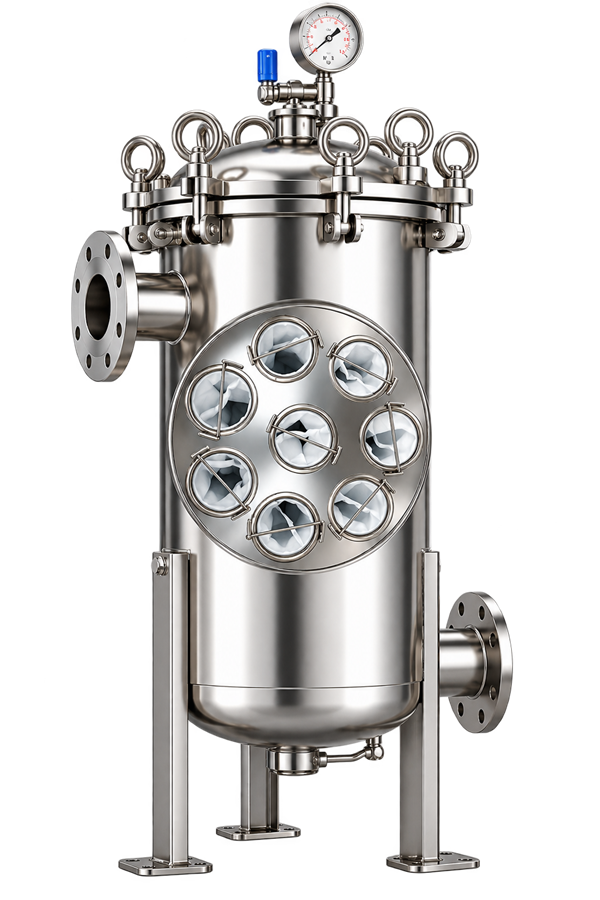

Multi-Bag Filter Housing
Parallel filter bags increase filtration area and dirt-holding capacity for high-flow or continuous production lines.
Designed for Higher Throughput
Two to six bags operate in parallel inside a shared vessel. The larger total filtration area can support higher flow rates and may extend the time between bag changes, depending on solids loading and micron rating. Inlet and outlet arrangements, cover style and vessel material can be specified for the installation.
Reference Configurations
| Model | Bag Count | Area | Reference Flow* | Connection |
|---|---|---|---|---|
| GXY-S2 | 2 | 1.0 m² | Up to 40 m³/h | DN65 |
| GXY-S3 | 3 | 1.5 m² | Up to 60 m³/h | DN80 |
| GXY-S4 | 4 | 2.0 m² | Up to 80 m³/h | DN80 |
| GXY-S6 | 6 | 3.0 m² | Up to 120 m³/h | DN100 |
*Reference values depend on liquid viscosity, solids loading, bag micron rating and operating pressure. Confirm sizing for the actual process.
Typical Uses
Common uses include cooling-water loops, industrial water treatment, chemical processing and other systems where a single-bag housing would require frequent changes.
